Central Support Permanent Outdoor Umbrella
The most popular and versatile umbrella in the MakMax commercial umbrella range, the Centra Architectural Umbrella is the perfect entertainer – ideal for cafes, restaurants, pubs, clubs and bars. The Centra model can be customised with prints and patterns or you can add planter boxes or other accessories. These iconic umbrellas are one of the most popular and cost effective options in MakMax’s commercial umbrella range.
- Centra Architectural Umbrella models are available in a range of sizes from 2.7m up to 5m.
- Commercial Outdoor Umbrella.
- Architectural-grade PVC canopy (coated polyester fabric with a PVDF finish to both sides).
- Steel frame with multi-step powdercoat protection system.
- Shapes available are square, truncated square, rectangular, hexagonal and octagonal.
- Wind rated to 120km/hr. Some models can be increased to higher wind speed locations.
- Fabric and steel colour options are available.

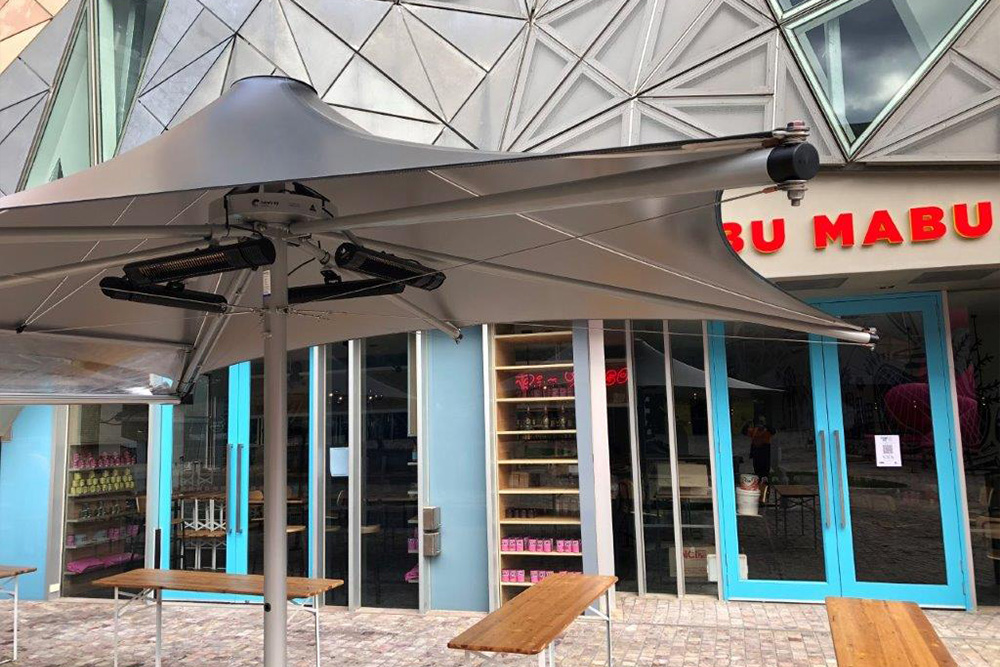

- Heating and LED lighting can be included.
- Ability to link multiple umbrellas together to increase seating area.
- In-ground socket option available on selected models (perfect for alfresco dining where the umbrella can be stored away).
- Above ground concrete base available when ground fixing is not an option.

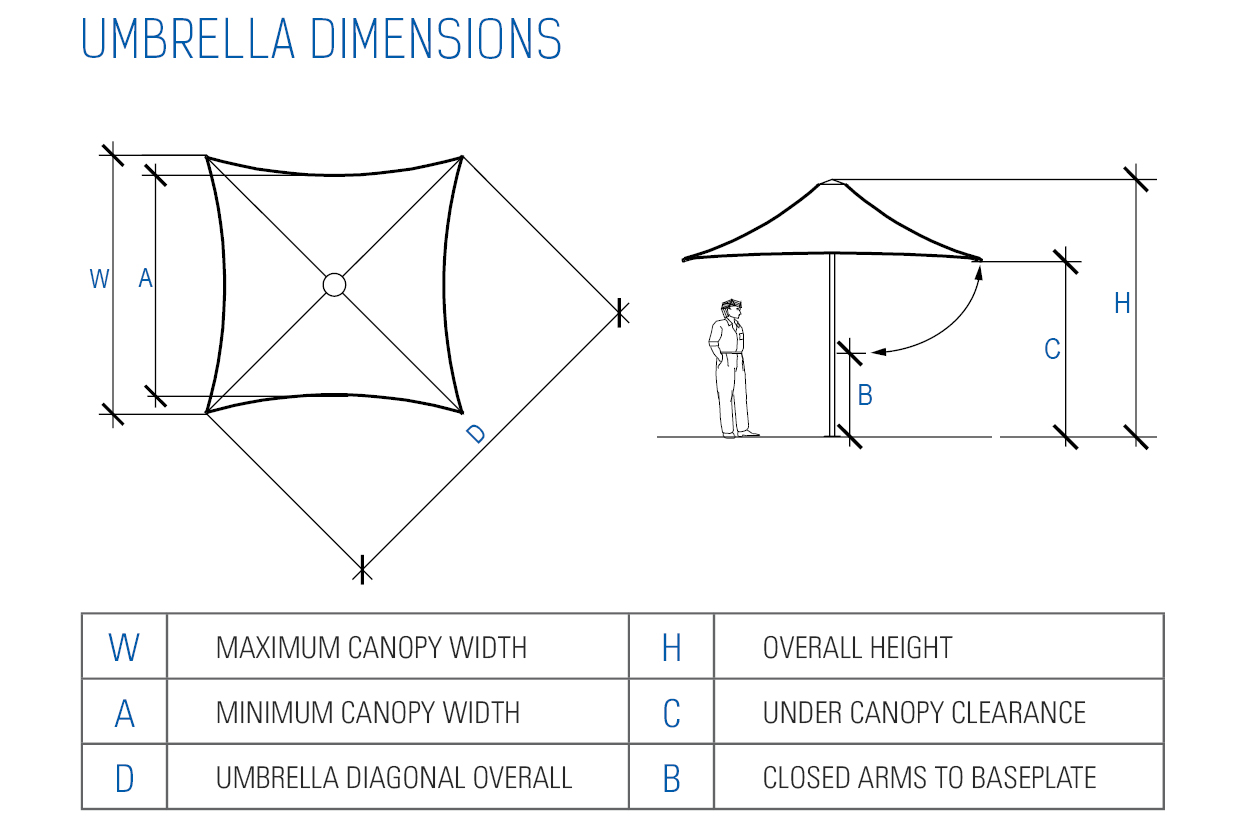

| Canopy shape | Model Name | Model Number | Canopy Size | Max. Canopy Width | Min. Canopy Width | Diagonal Overall | Overall Height | Under Canopy Clearance | Closed Arms To Baseplate |
|---|---|---|---|---|---|---|---|---|---|
| m (area-sqm) | (W) mm | (A) mm | (D) mm | (H) mm | (C) mm | (B) mm | |||
| SQUARE | CENTRA | CS27 | 2.7 (5.8) | 2698 | 2300 | 3778 | 3350 | 2400 | 1340 |
| CENTRA | CS32 | 3.2 (8.0) | 3178 | 2700 | 4456 | 3350 | 2300 | 990 | |
| CENTRA | CS38 | 3.8 (11.0) | 3726 | 3150 | 5227 | 3350 | 2300 | 620 | |
| CENTRA | CS40 | 4.0 (12.7) | 4060 | 3370 | 5690 | 3360 | 2270 | 410 | |
| CENTRA | CS50 | 5.0 (21.7) | 5055 | 4515 | 7090 | 3660 | 2400 | 50 | |
| TRUNCATED SQUARE | CENTRA | CTS43 | 4.3 (15.7) | 4295 | 3700 | 5000 | 3360 | 2300 | 750 |

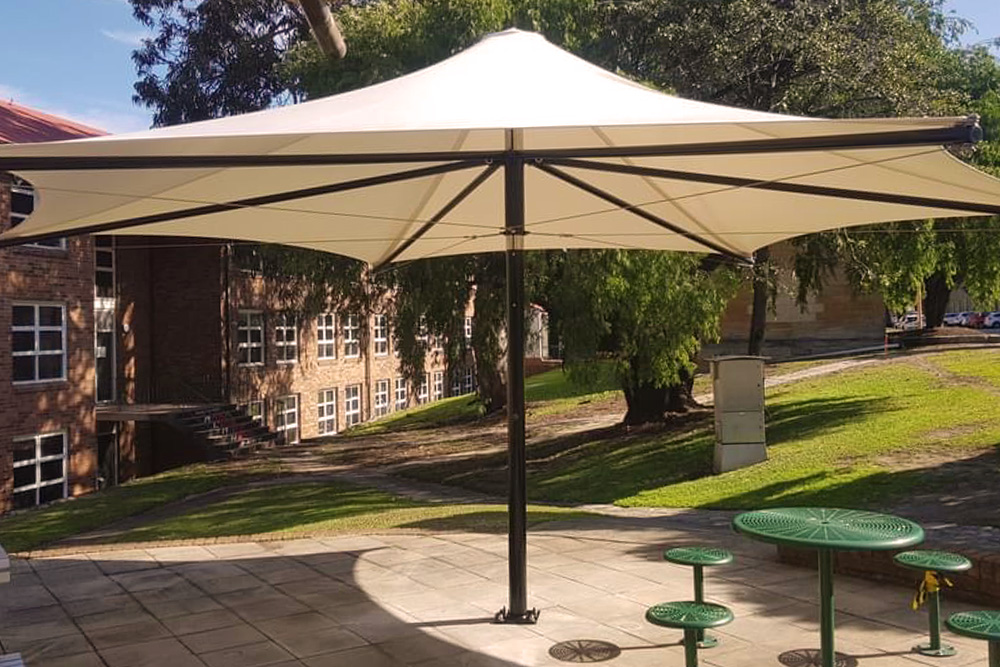

| HEXAGONAL | CENTRA | CH57 | 5.7 (22.9) | 5640 | 4940 | 6485 | 3360 | 2150 | 60 |
| OCTAGONAL | CENTRA | CO40 | 4 (11.6) | 4050 | 3610 | 4370 | 3360 | 2400 | 1090 |

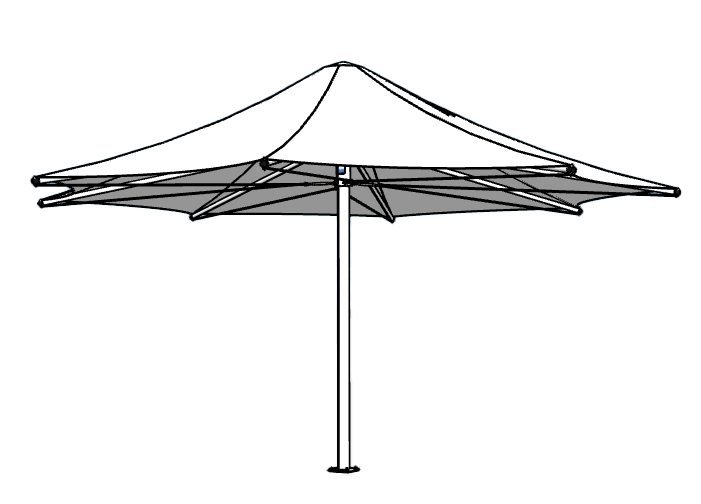

| CENTRA | CO50 | 5 (16.9) | 4952 | 4350 | 5345 | 3360 | 2200 | 545 |
Case Study

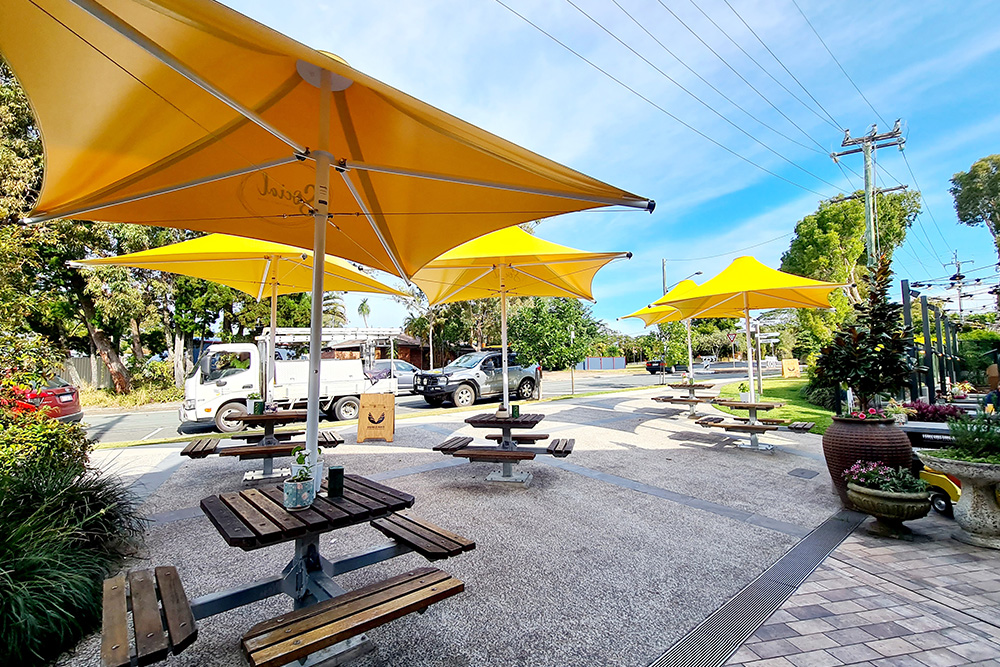

Bribie Island RSL Club Umbrellas
The bright yellow MakMax Architectural Umbrellas at Bribie Island RSL Club provide a warm welcome to visitors entering the club and creates the perfect shady space to enjoy some food and drinks.
Case Study
Rockingham Foreshore
Rockingham Foreshore is a vibrant, pedestrian-friendly precinct with a series of 22 brightly coloured Architectural Umbrellas offering plenty of shade for visitors along the Boardwalk.
Case Study
Opera House Function Centre
A unique project in an iconic location, the Sydney Opera House Function Centre Umbrellas are a fantastic example of the highly-adaptable design and aesthetic elegance of our Architectural Umbrella range.

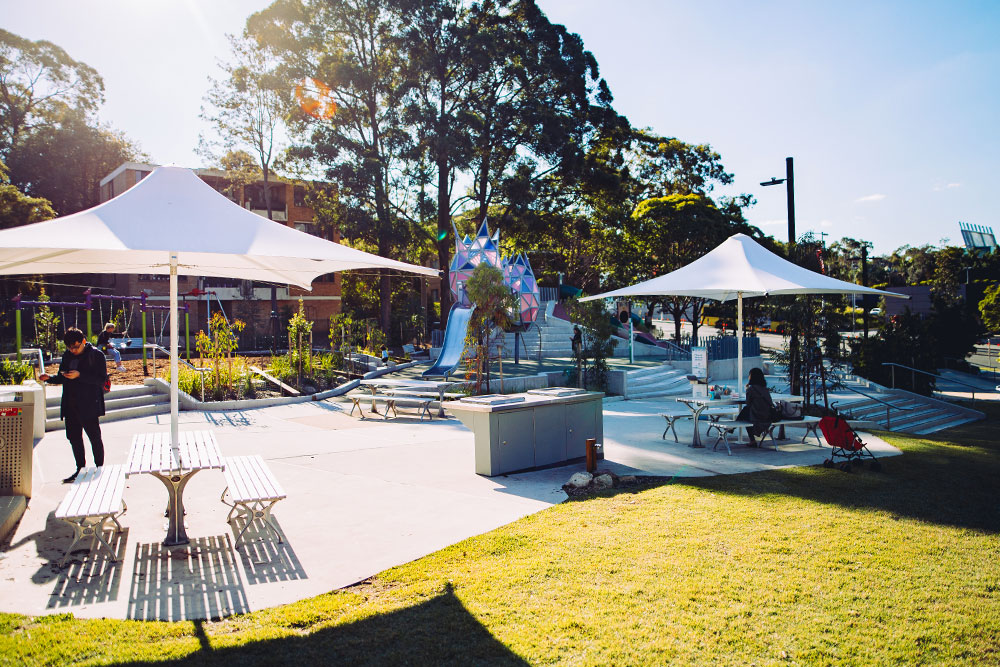

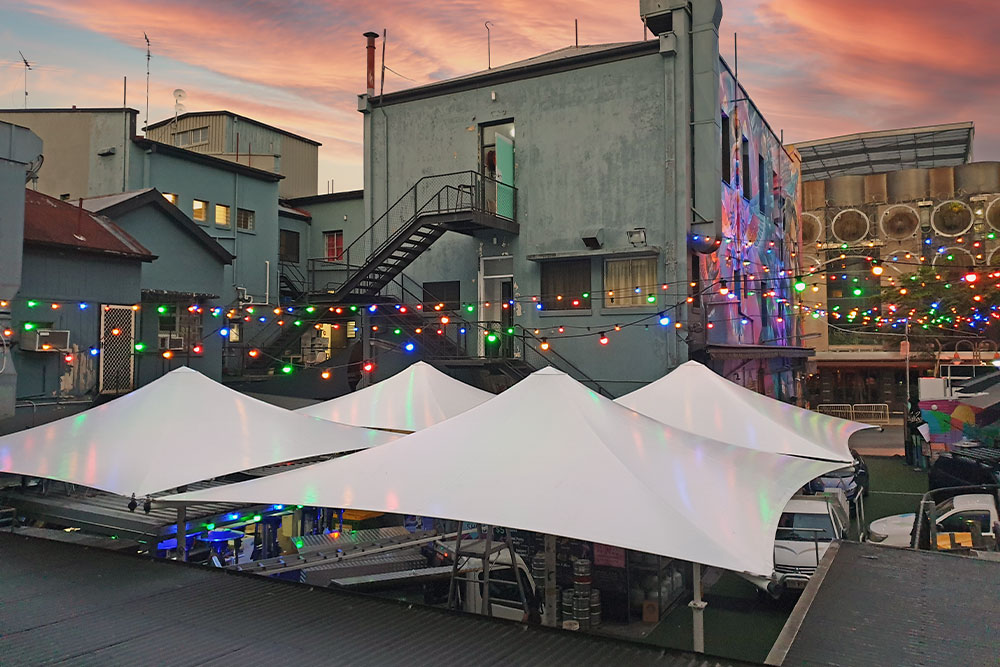

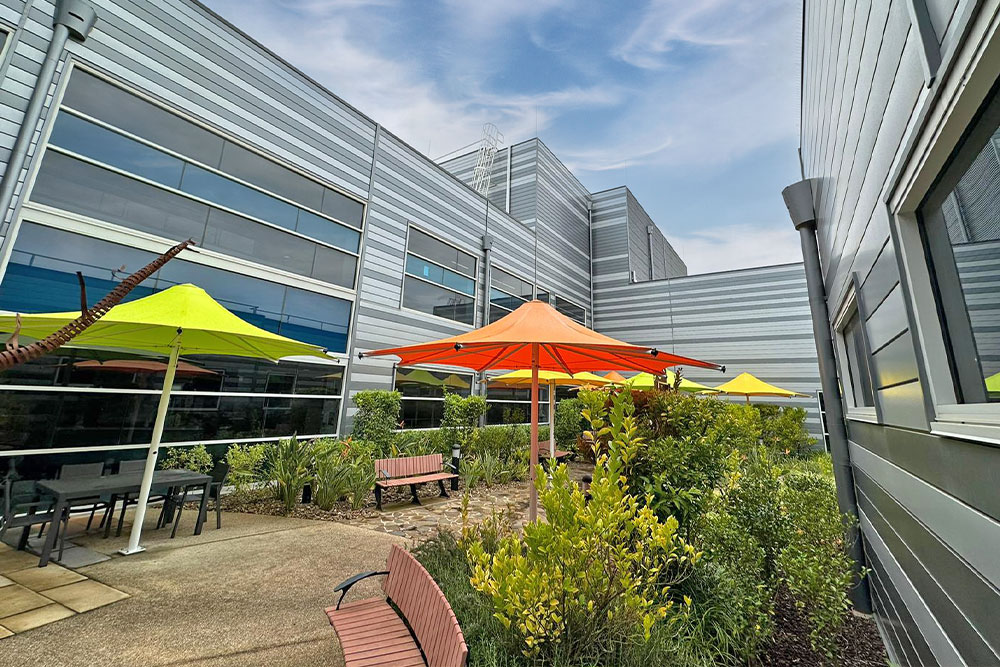

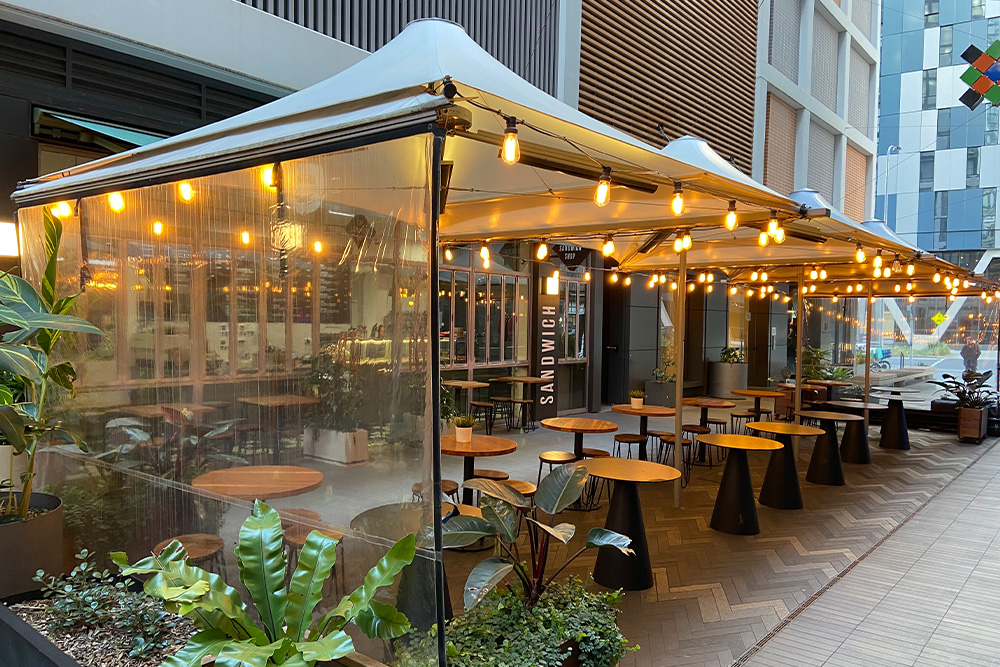

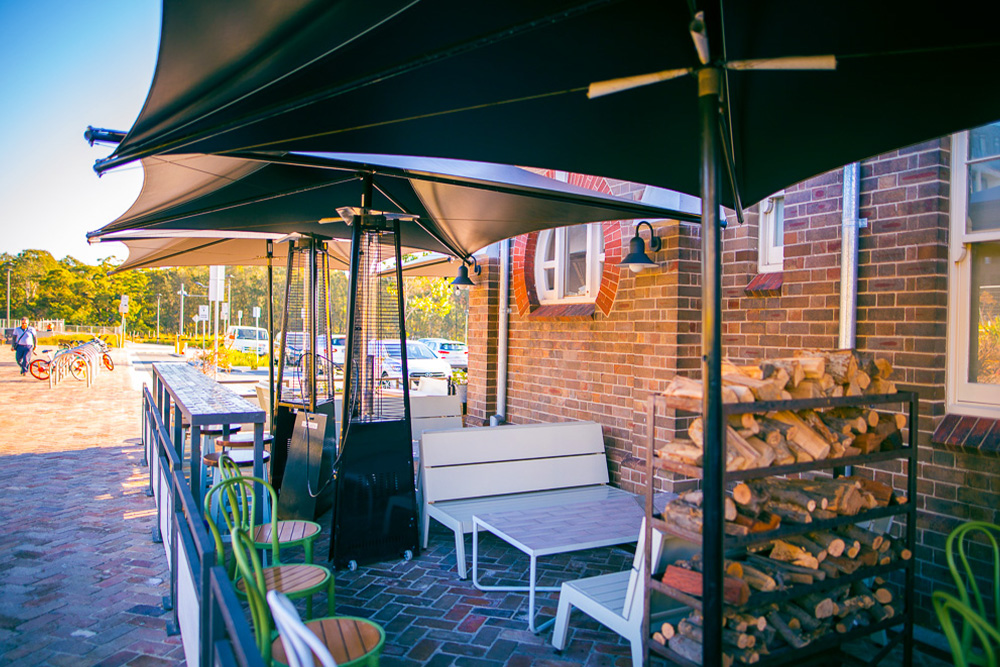

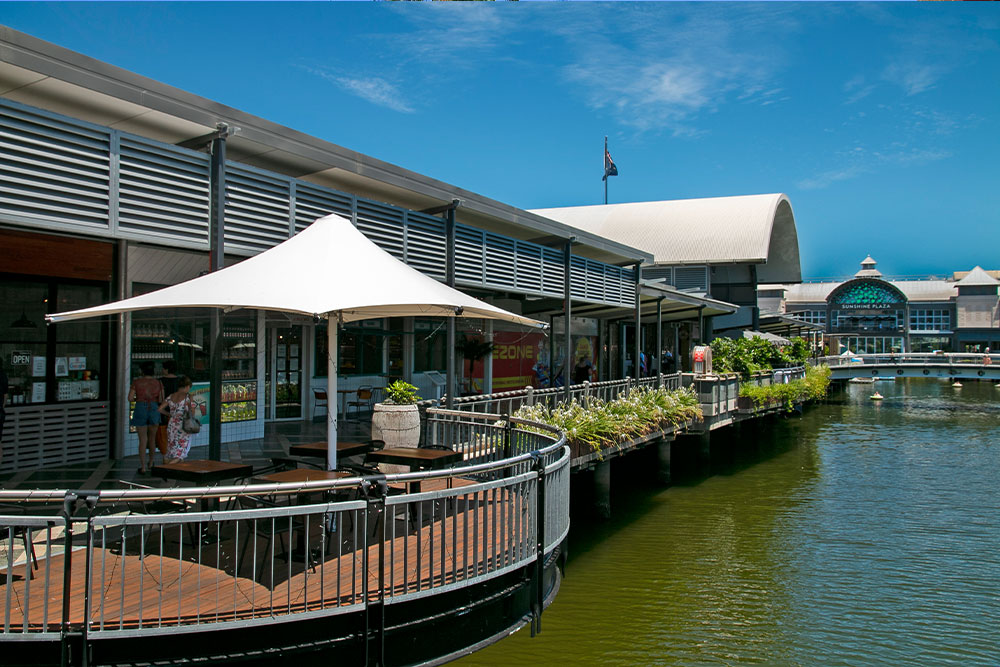

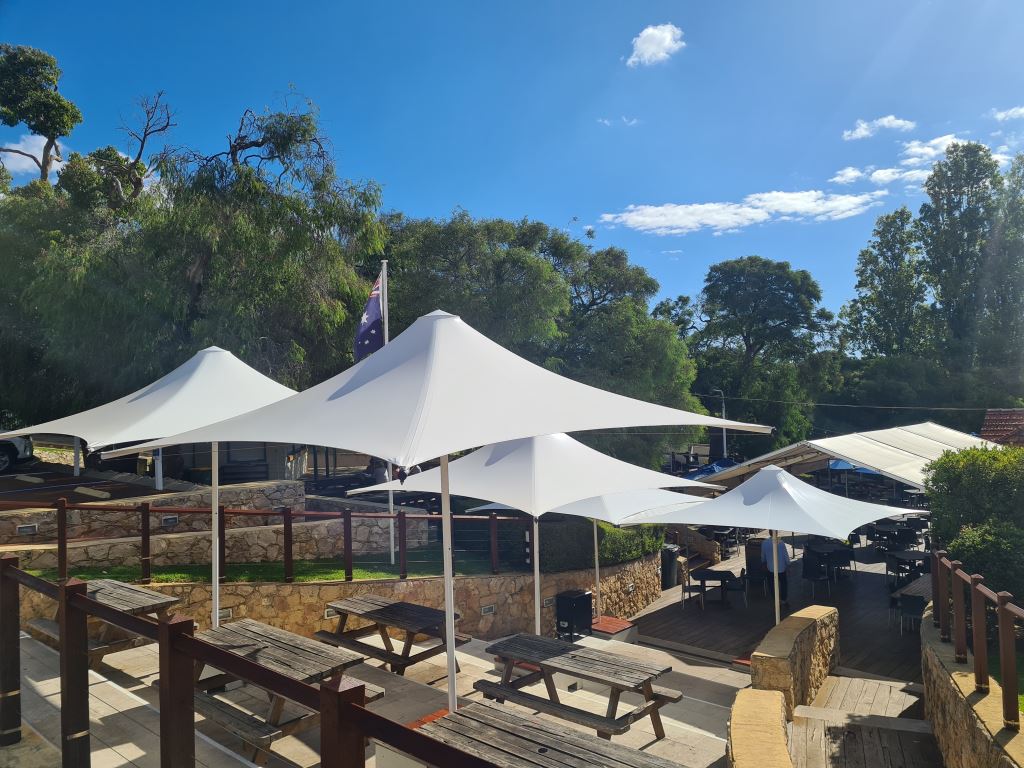

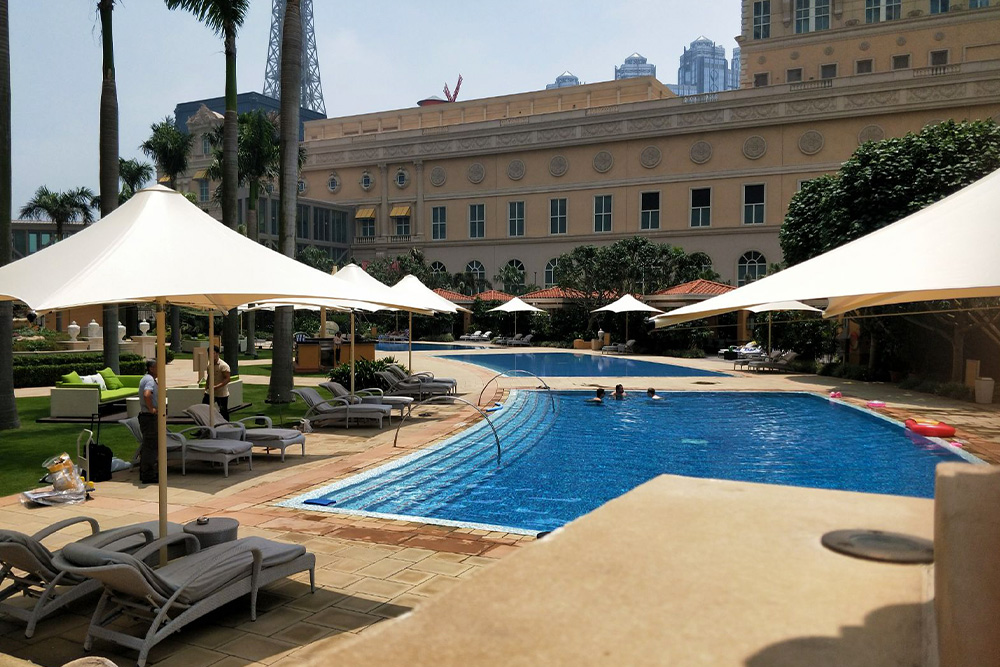

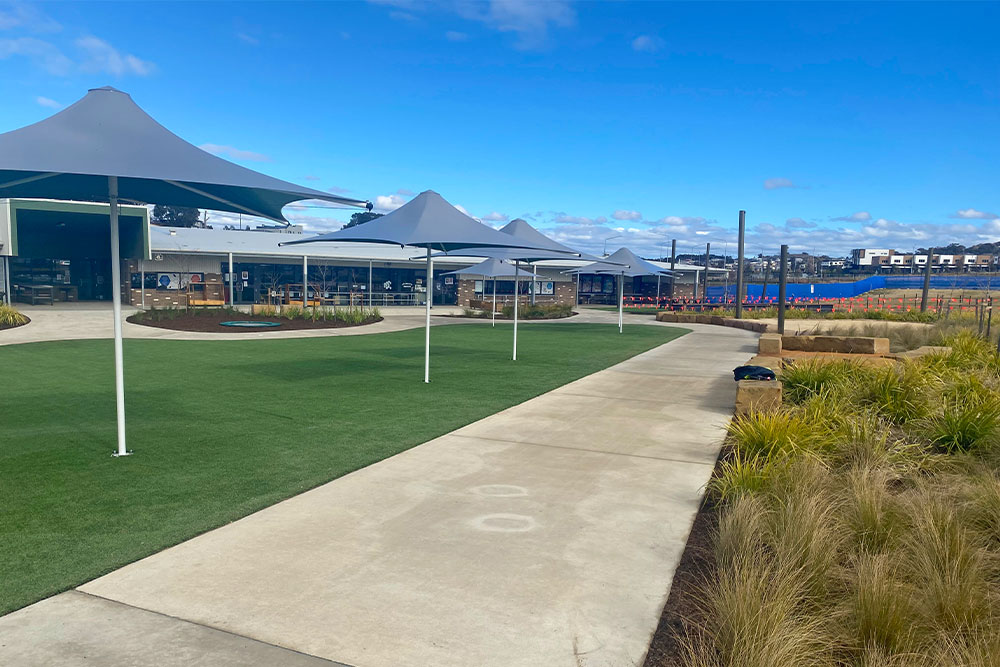

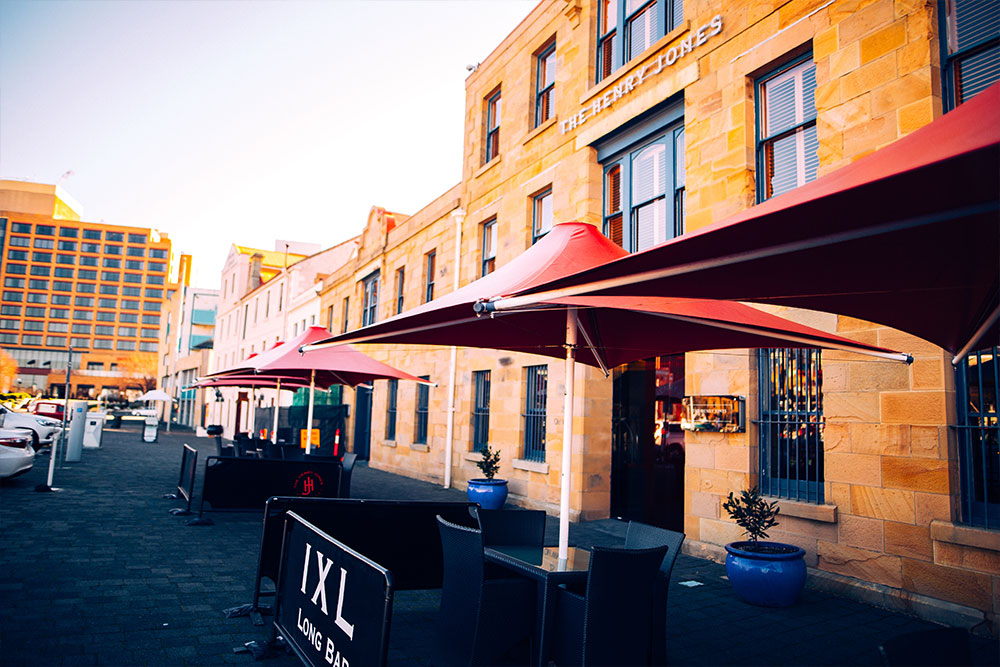

Centra Architectural Umbrella Gallery
Would You Like More Information Centra Architectural Umbrella?
Contact us today to discuss your shade requirements. We are the market leader in the design, engineering, fabrication and installation of commercial outdoor umbrellas and permanent shade structures for Cafes, Restaurants, Hotels, Resorts, Parks and Public Spaces.
