Willinga Park Stables Round Yard Roof
Project Details
Location: Bawley Point, NSW
Completion Date: July 2016
Size: 645sqm
Fabric: PTFE - Chukoh FGT800

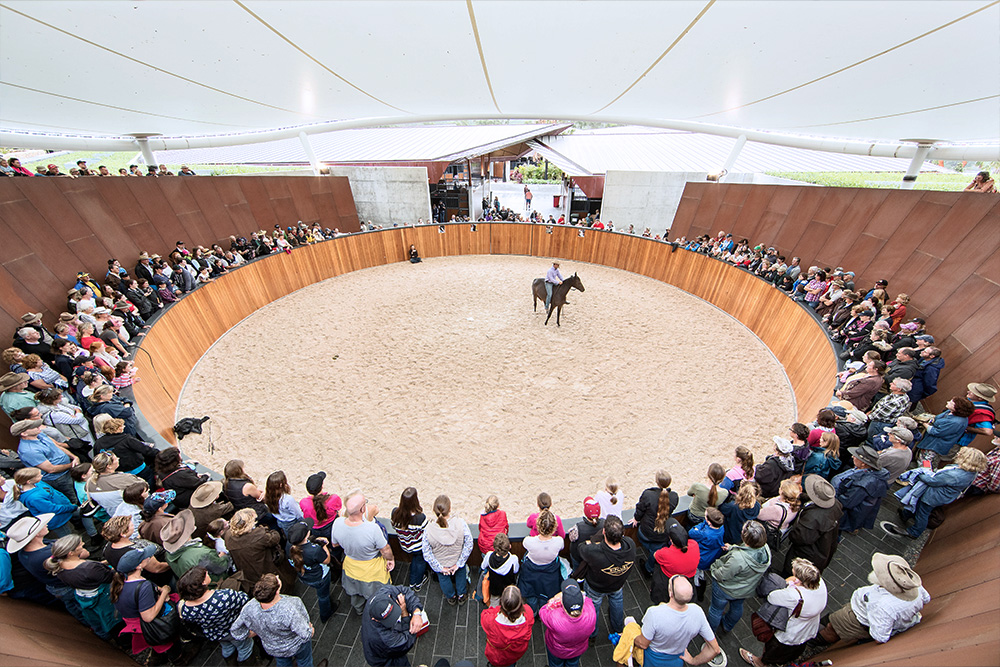

The Willinga Park Stables Round Yard Roof project involved the installation of a premium tensile membrane structure over a horse training and show-ring facility. Located in Bawley Point, NSW, Willinga Park is renowned for its state-of-the-art equestrian facilities. The Round Yard, situated within the luxury stables and grand prix arena areas, is a key feature of the venue. This amphitheatre-style structure provides an elevated view for spectators, enhancing the overall experience for visitors and participants alike. The project aimed to create an architecturally stunning and functional PTFE membrane roof that would provide essential weather protection while complementing the aesthetic of the surrounding facilities.
The Brief
The brief for the Willinga Park Stables Round Yard Roof was to engineer and construct a large-span tensile membrane roof that would cover the Round Yard, providing shelter for equestrian patrons and horses.
The master plan for the stables was designed by Cox Architecture, and included a unique undercover show-ring facility that would not only serve a practical purpose but also enhance the visual appeal of the facility. The tensile membrane roof design needed to integrate seamlessly into the architectural vision, creating a cohesive and visually striking environment. MakMax Australia, in collaboration with Tensys, was tasked with the partial engineering and workshop designs for the tenile membrane portion of the Round Yard, as well as the supply and installation of the fabric and hardware required to bring this vision to life.
The Concept

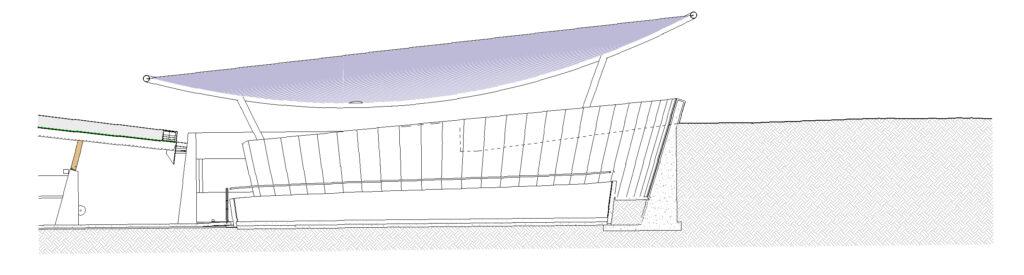

The Willinga Park Stables Round Yard Roof Concept Artwork by Cox Architecture.
The Materials
For the Round Yard Roof, the material selected was Chukoh SkyTop FGT800 PTFE, known for its durability, flexibility, and resistance to environmental factors. PTFE is an ideal choice for outdoor structures, especially in demanding environments like equestrian facilities.

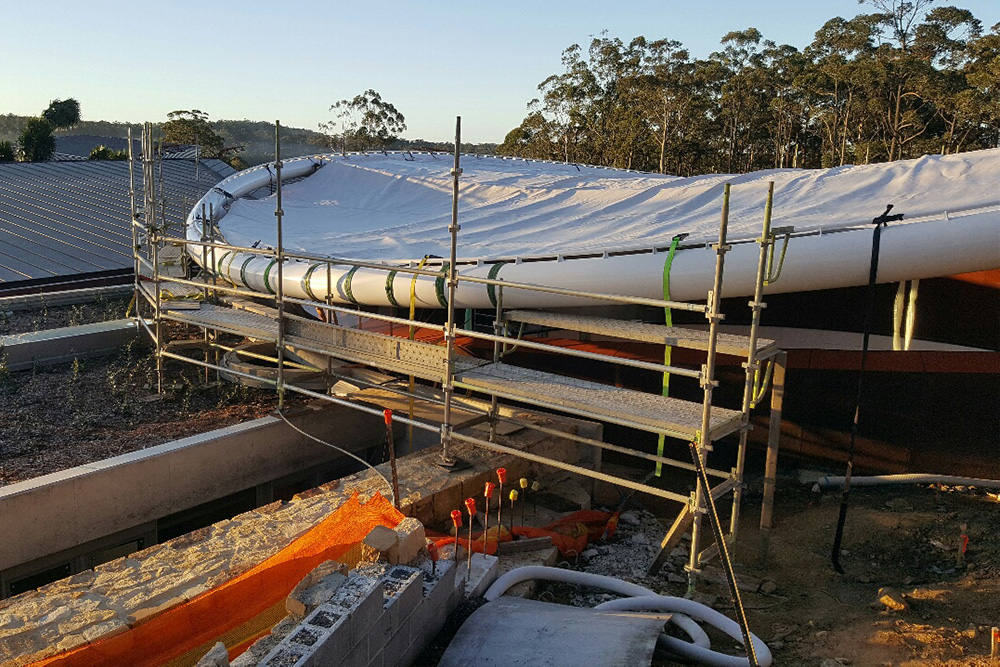

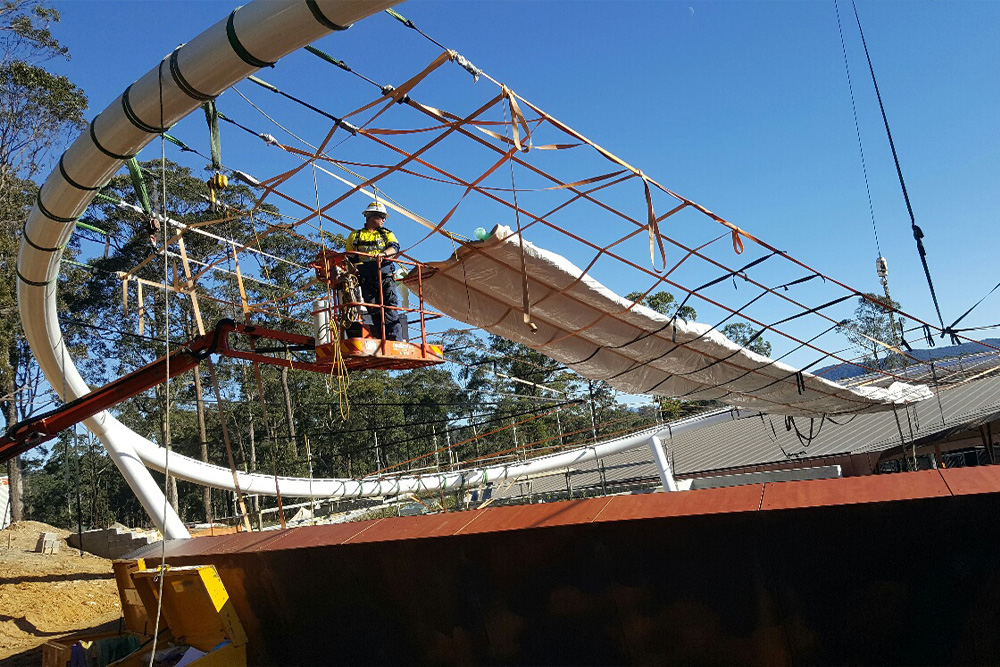

The membrane was tensioned over a perimeter-supported structure with a gracefully undulating edge beam, creating an anticlastic plane. This design, reminiscent of a Western-style saddle, not only added to the visual appeal but also ensured the structural integrity and longevity of the roof. The membrane was secured to the edge beam using a split extrusion, ensuring a tight and secure fit.
The Result

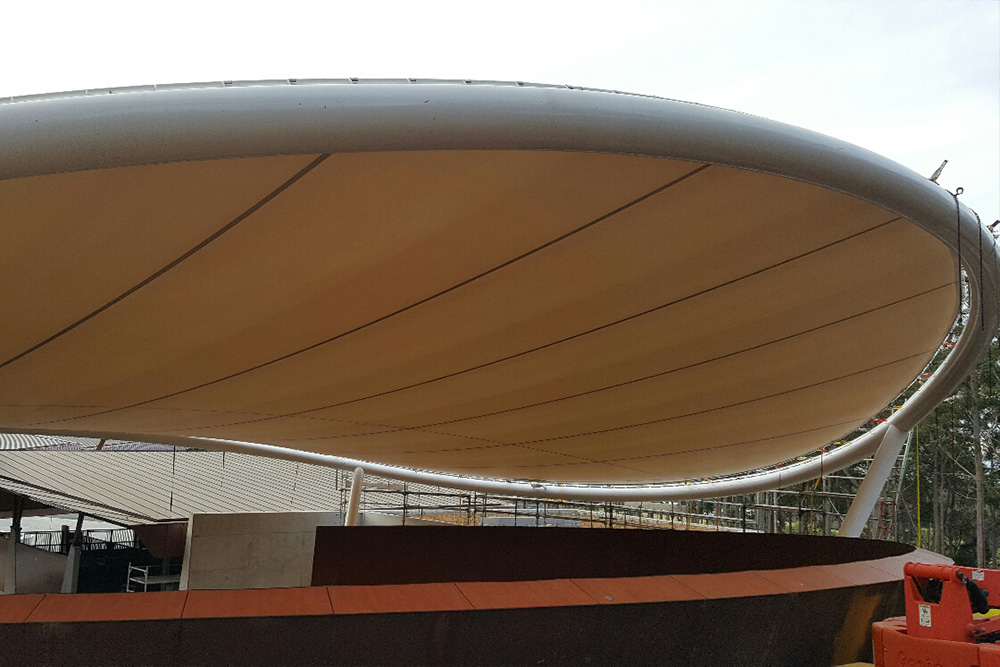

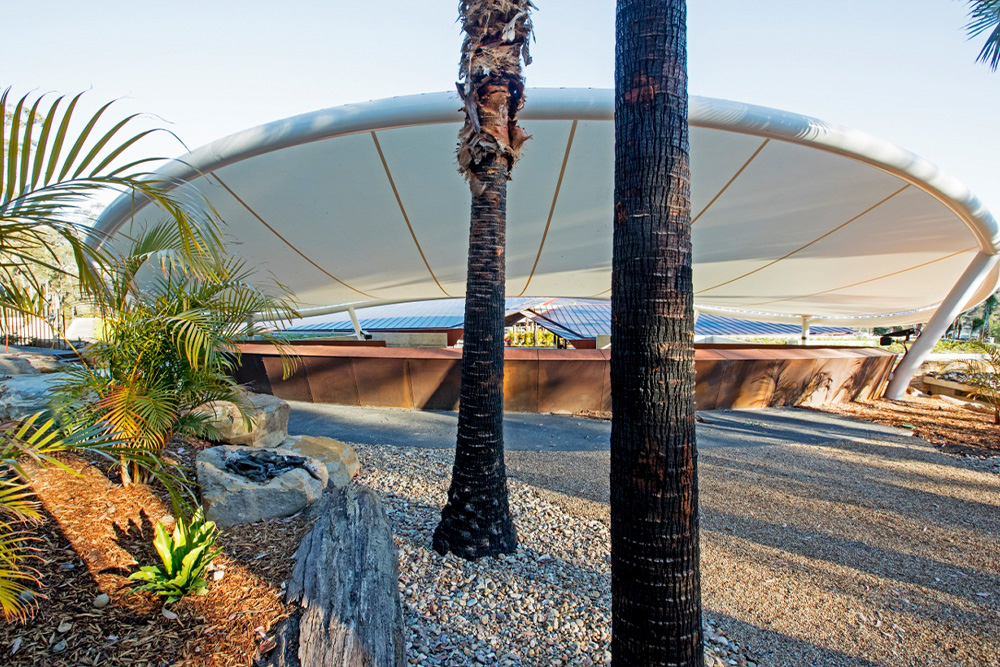

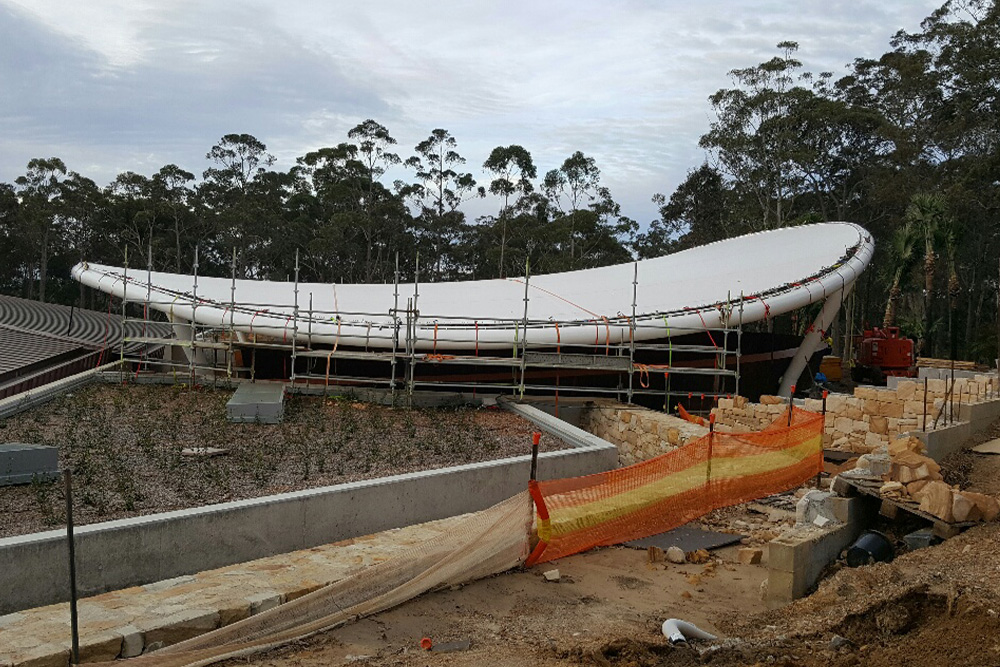

The completed Willinga Park Stables Round Yard Roof spans approximately 26 metres by 30 metres, covering a surface area of 645 square metres. The result is a visually stunning and highly functional tensile membrane roof that provides essential protection from the elements while enhancing the overall aesthetic of the facility.

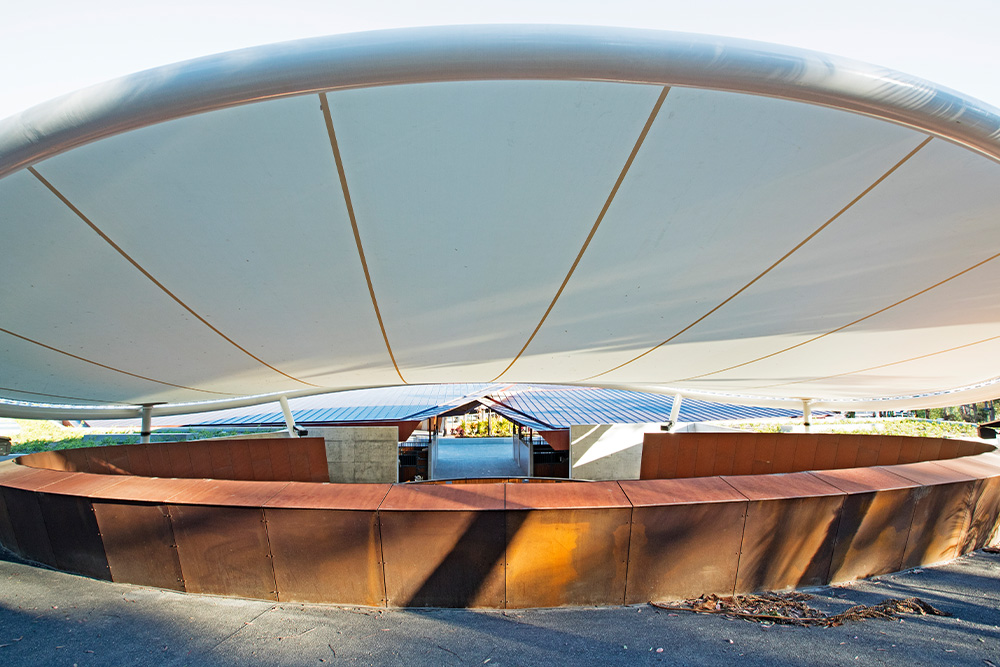

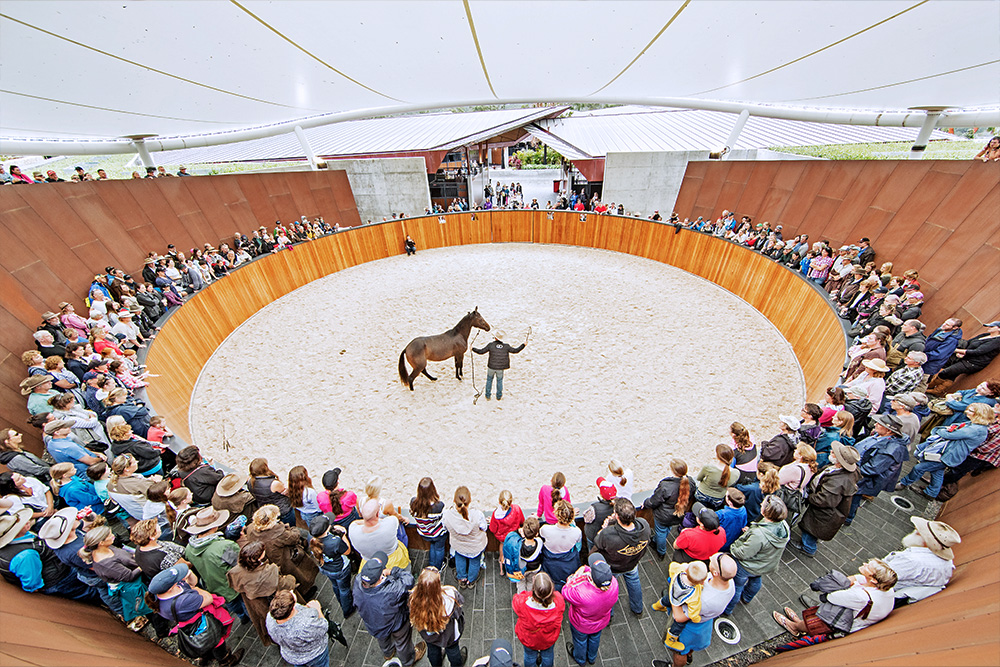

The undulating edge beam and anticlastic shape create a dynamic architectural feature that complements the surrounding structures. The PTFE roof offers excellent durability, ensuring that the Round Yard remains a top-quality venue for training and events for years to come. The project successfully met the client’s brief, delivering a custom fabric architecture solution that enhances both form and function at Willinga Park.
